Wide field of view: 3000 µm × 800 µm
Supports visual confirmation of ultrafine bubble presence in low-concentration water samples.
Exclusive North American Distributor

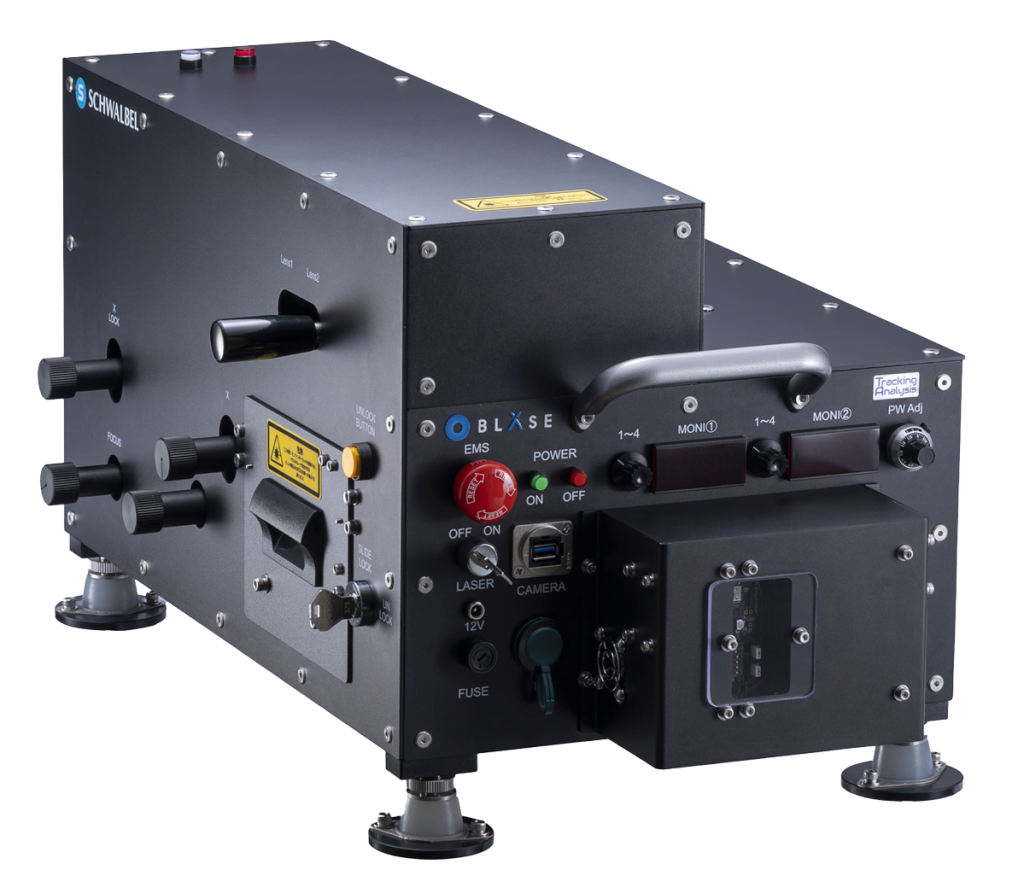

Blase XUltrafine Bubble Measurement Unit
Includes custom software for nano-particle detection and quantification — purpose-built for researchers working with ultrafine bubbles.
Overview
Purpose-built for researchers working with ultrafine bubbles
The Blase X is a high-precision nanobubble measurement device designed to identify and quantify ultrafine bubbles at concentrations up to approximately 1 billion per milliliter. Advanced detection — light-based sensing, electrical measurement, and particle-tracking — delivers accurate, reliable data across a wide range of applications.
Core analytical capabilities include Nanoparticle Tracking Analysis (NTA) for size and concentration, Dynamic Light Scattering (DLS) for size distribution, and zeta potential analysis for bubble stability. Blase instruments are calibrated with 60 nm and 100 nm PSL standard particles and feature a removable measurement cell with manual sample loading — enabling rapid calibration and reproducible measurements.
Engineered for compatibility with ultrafine bubble generators, Blase X supports both low and high concentration outputs — ideal for research, industrial processing, and advanced fluid systems.
Key Benefits
Fast, portable ultrafine bubble measurement for research and testing
Detects ultrafine bubbles at 10⁴ p/mL
Stable, repeatable observation powered by a high-resolution CMOS sensor.
Real-time laser scattering imaging
Live particle motion captured via a short-wavelength 405 nm laser and Rayleigh scattering.
Image-based particle counting
Estimates particle number from brightness, contrast, and pattern detection.
Key Features
Validate every result with complete visual clarity

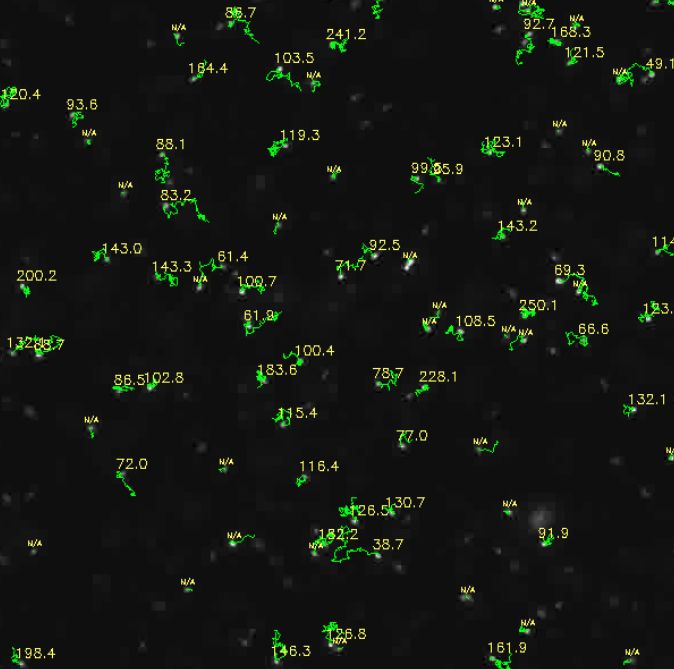

Blase provides a direct view into your sample, allowing you to observe each particle as it is detected and tracked on screen. This transparent process delivers immediate confidence in your data — showing exactly what's present in your sample.
Visual confirmation of tracking and rapid sample-purity evaluation deliver the trust and transparency essential for analyzing complex, high-value samples.
- Real-time particle tracking on screen
- Verify sample complexity and purity instantly
- Optimized laser beam shape for stable, large-area observation
Particle Size Measurement
Provisional particle size — displayed during tracking

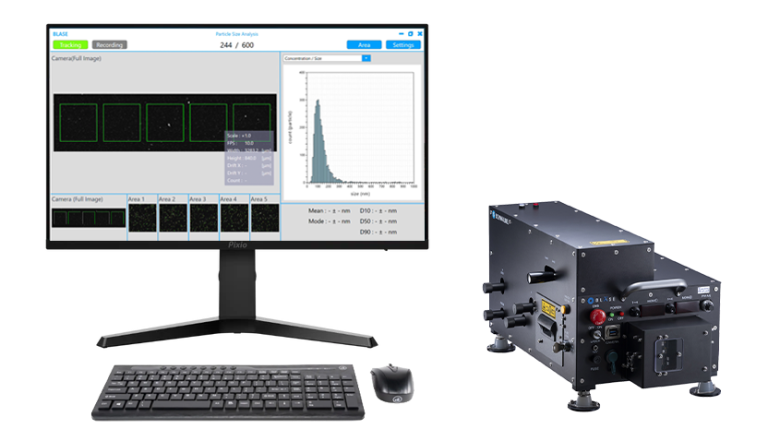

The system provides real-time visibility into nanobubble characterization through provisional particle size displayed during tracking, letting users monitor size estimations as each particle is being analyzed. This immediate feedback enhances process control and ensures accurate measurements throughout the analysis.
Results are also displayed for each individual measurement area, offering detailed insight into spatial variations within the sample. By breaking data down by region, users can assess consistency, detect anomalies, and gain a comprehensive understanding of nanobubble size distribution across the entire sample.
Specifications
Built for repeatable, research-grade results
- Detection method
- Laser optics + image analysis
- Concentration range
- Up to ~1 × 10⁹ p/mL
- Lower detection limit
- 10⁴ p/mL
- Laser wavelength
- 405 nm (short-wave)
- Field of view
- 3000 µm × 800 µm
- Calibration standards
- 60 nm & 100 nm PSL
- Analyses
- NTA · DLS · Zeta potential
- Sample loading
- Removable cell, manual loading
How It Compares
Blase X vs. conventional NTA instruments
A side-by-side look at how Blase X stacks up against instruments like the Malvern NanoSight. Detailed figures are being finalized and will appear here soon.
| Criteria | Blase X | Malvern NanoSight |
|---|---|---|
| Detection range | Coming soon | Coming soon |
| Particle size measurement | Coming soon | Coming soon |
| Software | Coming soon | Coming soon |
| Calibration standards | Coming soon | Coming soon |
| Price tier | Coming soon | Coming soon |
| Support | Coming soon | Coming soon |
| Best for | Coming soon | Coming soon |
Bring Blase X into your lab
Aquadei is the exclusive North American distributor. Speak with our team about pilots, calibration support, and integration with your nanobubble platform.
Let's discuss your process
Free consultation. Real engineering answers.
Tell us about your water challenge. We'll review your process, share preliminary recommendations, and outline what an Aquadei deployment could look like for your operation — at no cost.
